Commercial Wash Room Refurbishment

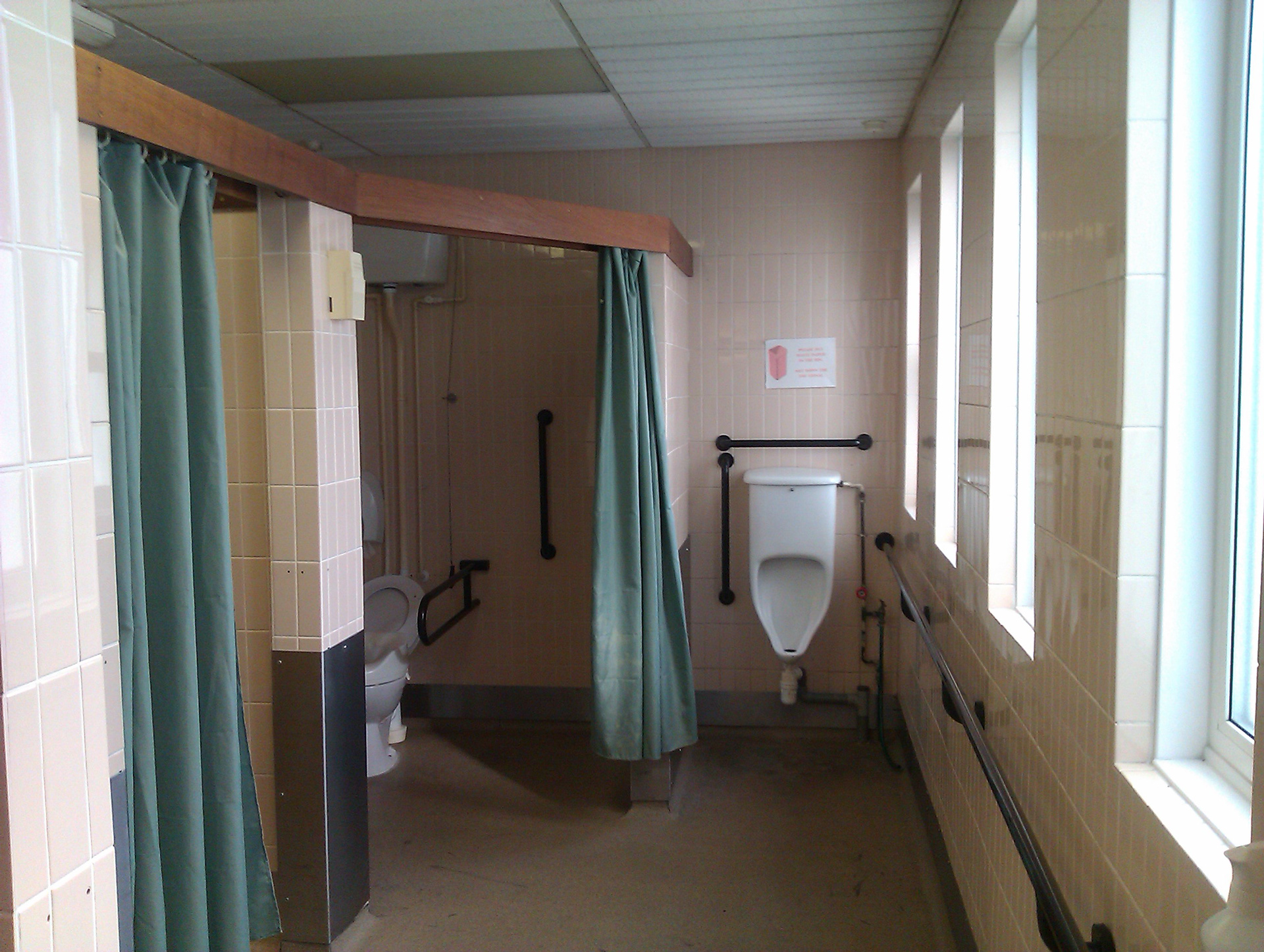

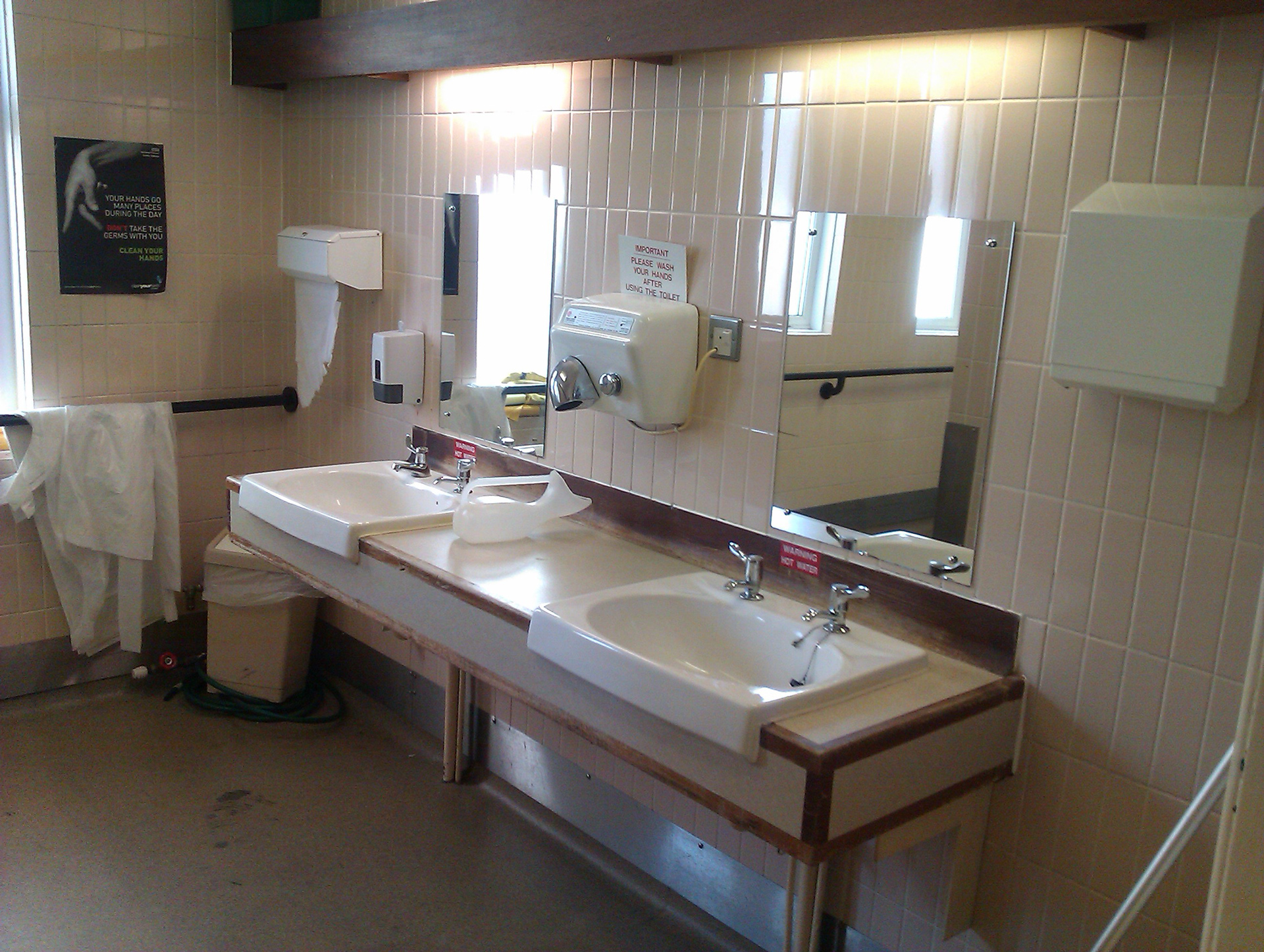

a selection of before photos and project drawings
Magnified Plan
Magnified Plan
Internal Elevation

The internal elevations with dimensions enabled the contractorto easily understand the proposal visually instead of having to transfer themeasurements from the specification. This omitted the possibility of misinterpretationand enabled the project to run smoothly and without any extensions to theproposed completion date.
Internal Elevation
Section

The main wash area was designed with the end user in mind. As the homes occupants are of mixed disablities, it was imperative that this area worked for both ambulant and full disabled persons.
Ceiling Detail

It was crucial the design for the wall/ceiling abutment detailwas understood by the contractor as this is one of the main features of thedesign, as it not only provides a pleasant aesthetical appearance upon enteringthe main wash area but it also provides a practical solution to help aid thevisually impaired users as describedbr>
